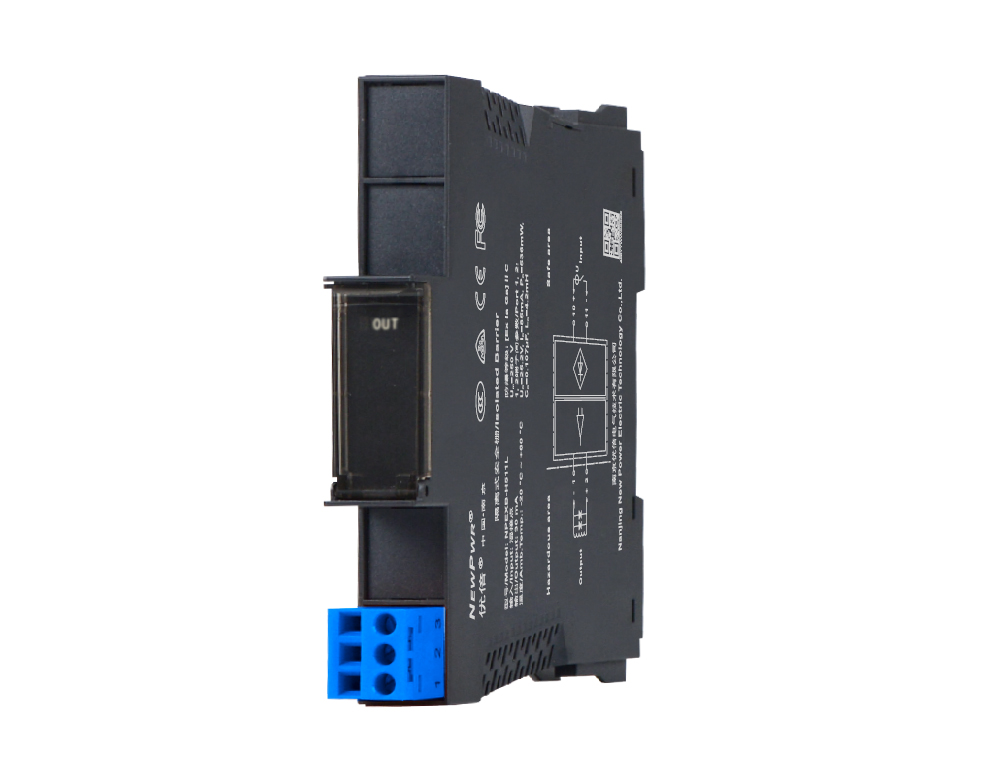

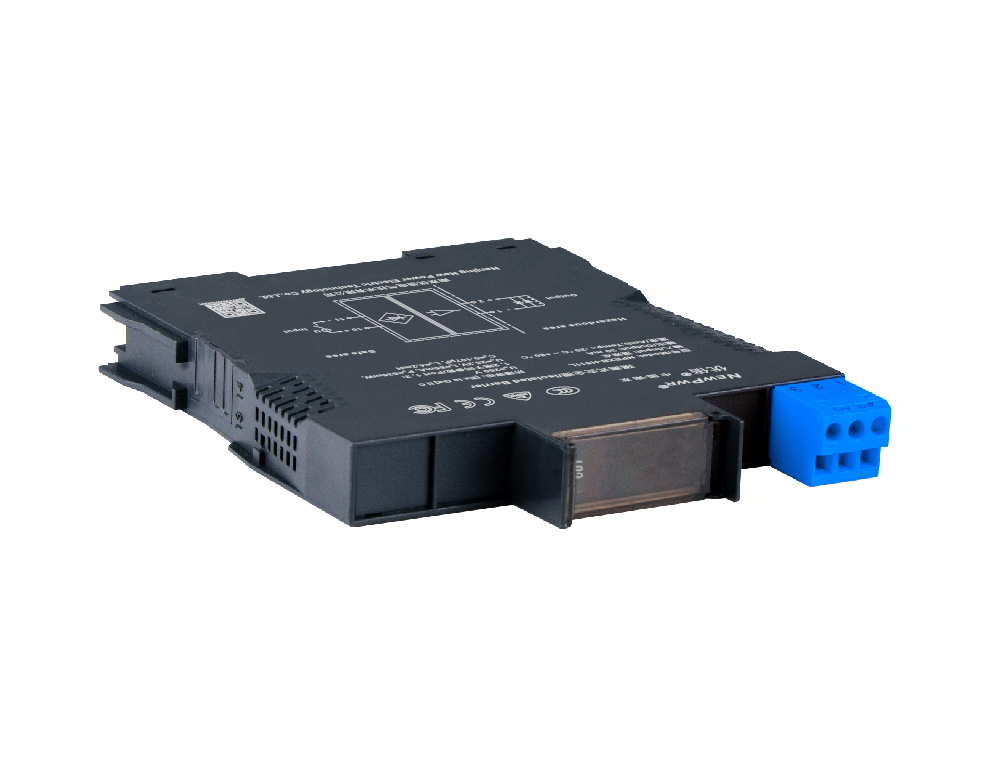

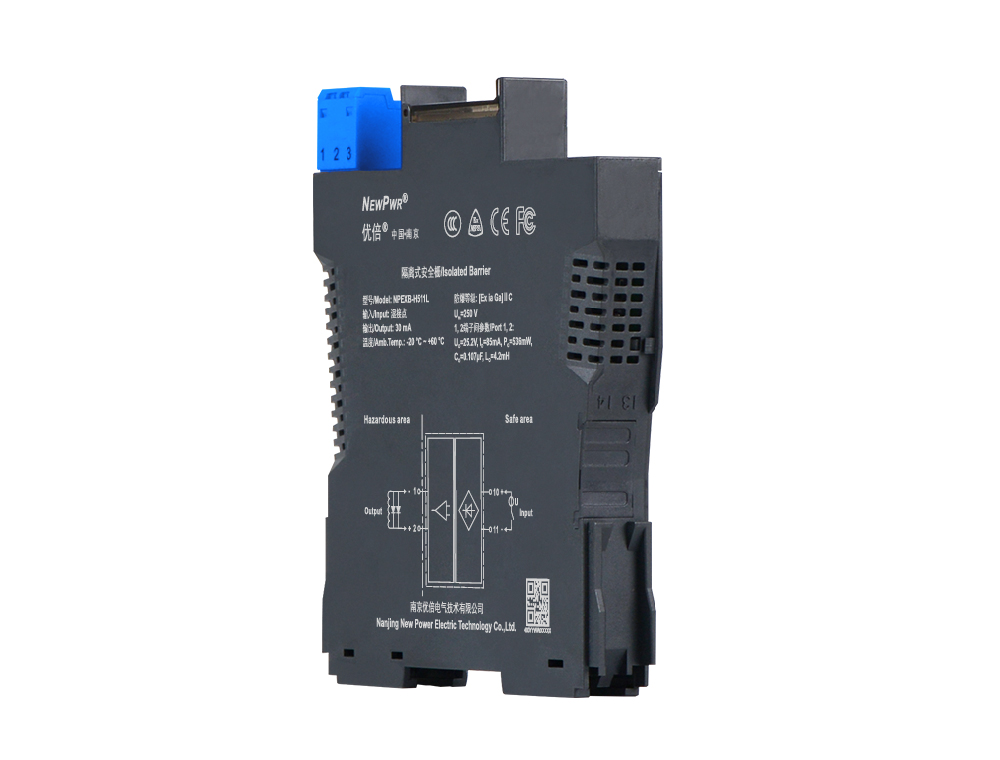

NPEXB-H511L

Digital output isolated barrier. By switch signal controlling, transfers the wet contact signals from a safe area into current signals to a hazardous area, and drives field device like intrinsically safe valves, audible alarms, etc. It has backplane loop powered. The input and output is galvanically isolated from each other.
PA国际厅(中国区)官方网站-PlayAce PA国际厅(中国区)官方网站-PlayAce

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXB-H511L

【Core technology】


【Installation and disposal】






Apparatus installation                            Apparatus disposal

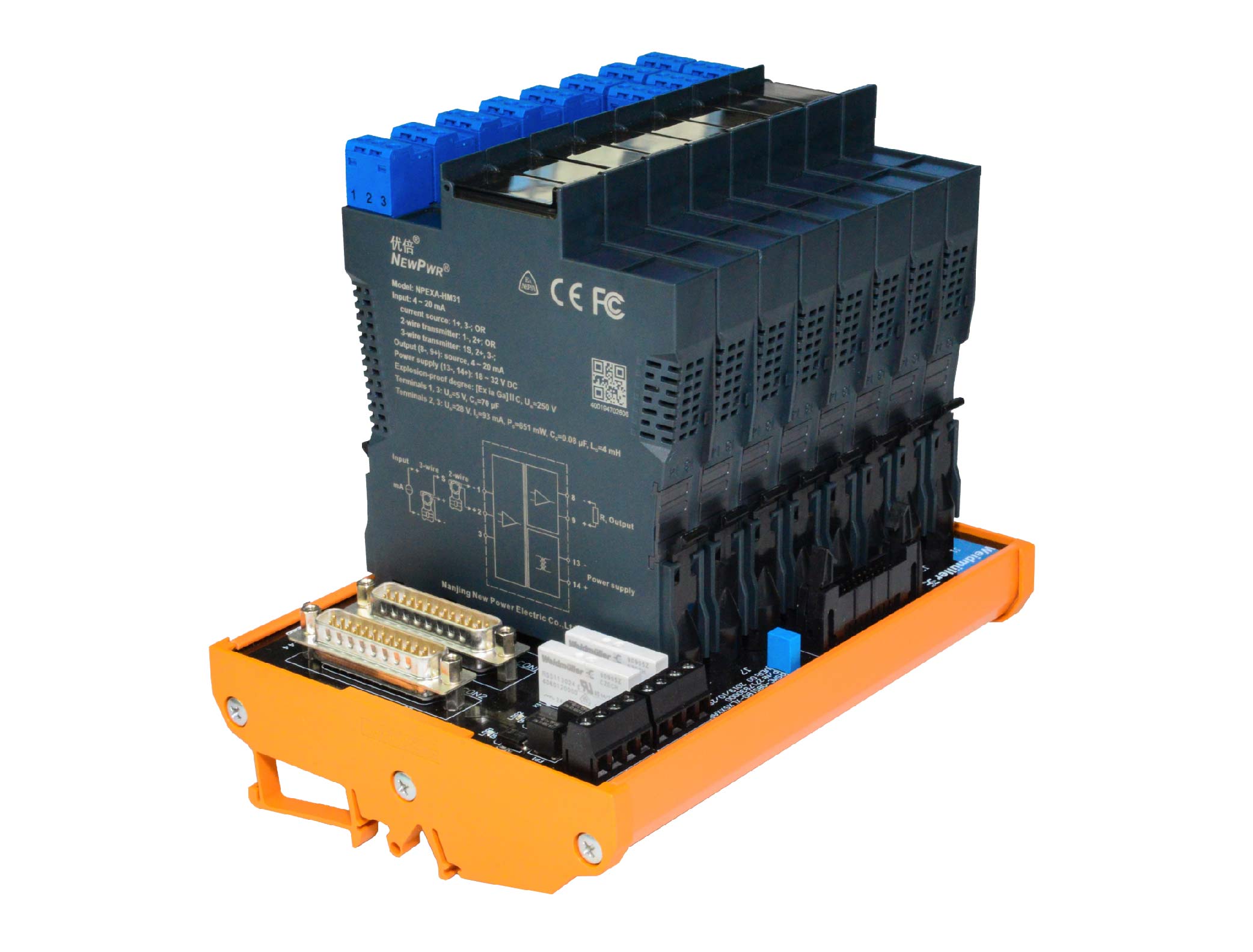

Backplan installation                                Backplan disposal




【Technical data】 Supply Input Output General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Loop Powered 20 ~ 30 V DC
Input
Input signal wet contact
Output
Output voltage ＞ 11.2 V DC
Output current ≤ 35 mA
Open-circuit voltage 21.5 V DC
General parameters
Response time ＜ 20 ms
Power dissipation ≤ 1.4 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 2500V AC (intrinsically safe side / non-intrinsically safe side);
Insulation resistance ≥ 100 MΩ (Input /Output)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 15.8mm (W) × 121.6mm (H) × 104.8mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Electromagnetic compatibility [Ex ia Ga]ⅡC
Um 250 V
Uo 25.2 V (Terminals 1, 2)
Io 85 mA (Terminals 1, 2)
Po 536 mW (Terminals 1, 2)
Co 0.107 μF (Terminals 1, 2)
Lo 4.2 mH (Terminals 1, 2)
